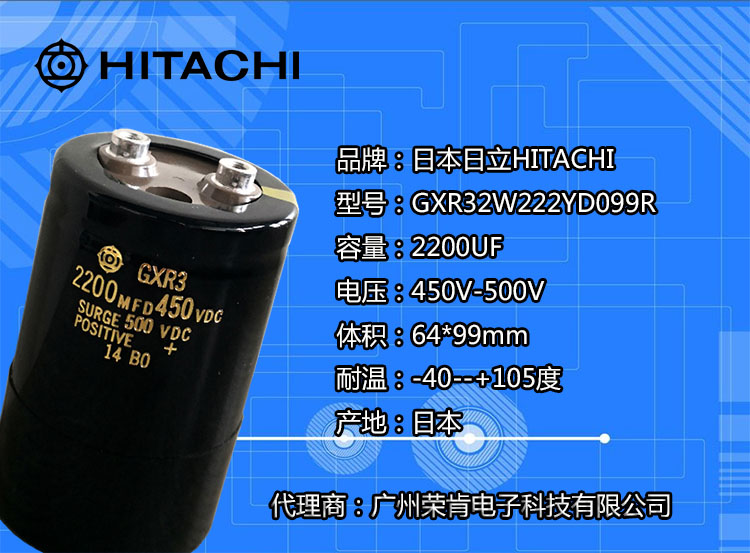

日立电解电容GXR3系列 日本原产地
型号:GXR32W222YD099R
容量:2200UF
额定电压:450VDC
浪涌电压:500VDC
温度:-40--+105度
体积:64*99毫米
寿命:保证5000小时
纹波电流:9.5Arms
1.Product Name: Aluminum Electrolytic Capacitor
2.Shape:Metal case,Screw Terminals
3.Type: GXR32W222YD099R (105℃ 5,000h)
4.Specifications
1.Operating Temperature Range: - 40~+105℃
2.Rated Voltage: 450V.DC
3.Capacitance : 2,200μF
4.Capacitance Tolerance:-20 ~+20%(at120Hz,20℃)
5.tanδ(Dissipation Factor):0.20 (at120Hz,20℃)
6.Surge Voltage: 500V.DC
7.Max.Leakage Current: 5.0mA
8.Permissible Ripple Current(Max.):9.5Arms(at120Hz,105℃)
Please apply the following factors for ripple current, if capacitor is put under conditions except for 105℃ 120Hz.
Applied ripple current should be below 60A, because of the limit for terminal's permissible ripple current.
全新日本进口电容器
AIC日立铝电解电容器,预计20年寿命
55摄氏度时寿命为30万小时
原装的为什么好用?漏电流小,损耗小,发热慢,寿命长
|
